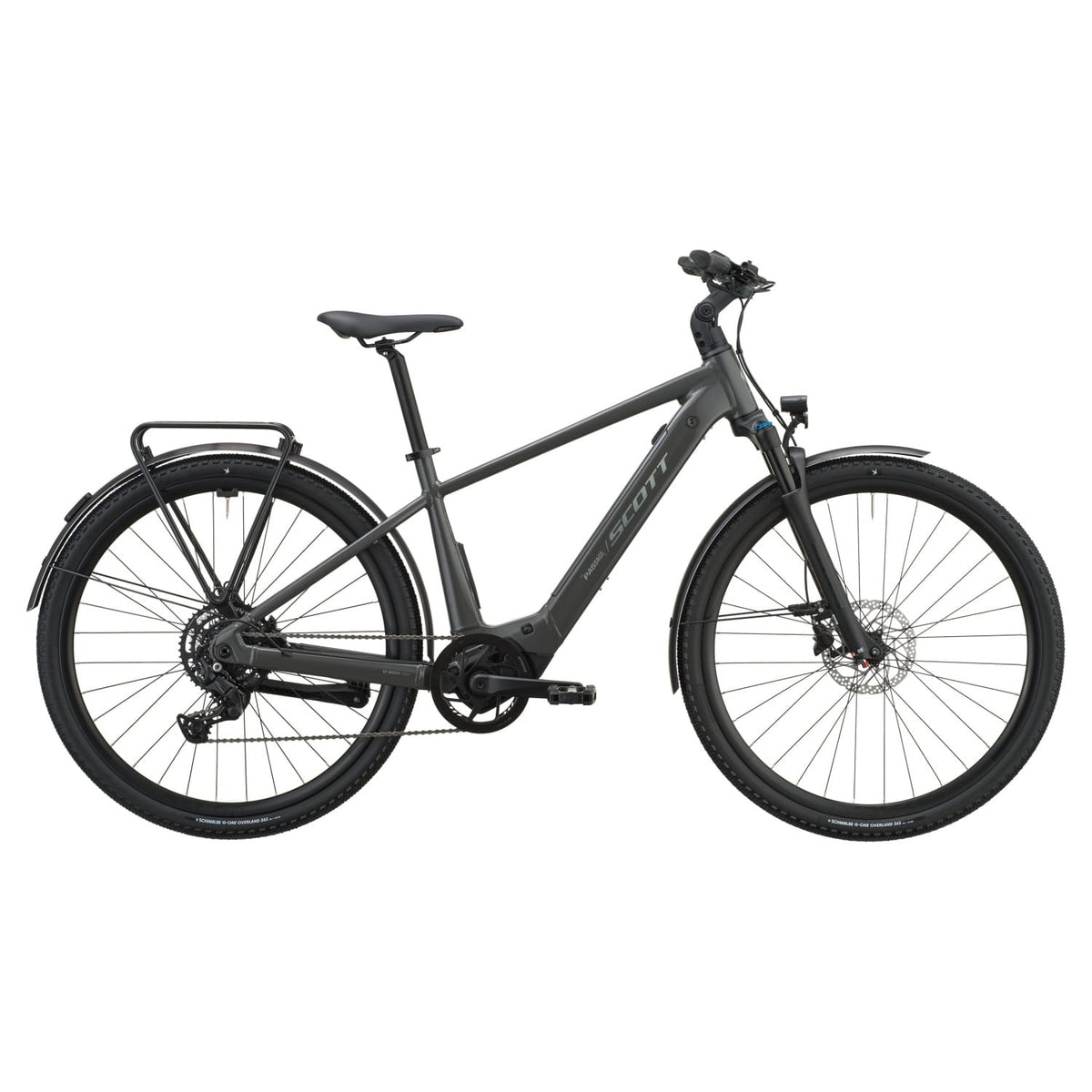

Scott Passage 20 2027 Cinder Grey

€3.599,00

4276638524010

SCOTT PASSAGE 20 2027 CINDER GREY

The Scott Passage 20 2027 Cinder Grey is an electric bike for everyday journeys and leisure rides. Its assistance system uses the Bosch Performance Line SX motor and a 400 Wh battery. The 1x9 drivetrain lets you adjust your pedalling to the route.

FEATURES:

Frame: Alloy S-XXL=29", 6061 Alloy custom butted tubing, Top extraction battery
Fork: SR Suntour NRX32 E AIR LO
Rear Derailleur: Shimano Cues RD-U4000 9 Speed
Shifters: Shimano Cues SL-U4000 With Display
Crankset: FSA CK 220 170mm
Cassette/Rear Sprocket: Shimano Cues CS-LG300, 9 Speed 11-46T
Chain/Belt: Shimano CN-LG500
Front Brake: Shimano BR-MT201 2-Piston/Shimano SM-RT30 CL, 180mm
Rear Brake: Shimano BR-MT201 2-Piston/Shimano SM-RT30 CL, 160mm
Front Tire: Schwalbe G-One Overland 365 Perf, 700x50C
Rear Tire: Schwalbe G-One Overland 365 Perf, 700x50C
Handlebar: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
Stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
Seatpost: Syncros M3.0, 31.6mm, 350mm
Saddle: Selle Royal Explora Athletic 155mm
Motor: Bosch Performance Line SX
Battery: Compact Tube 400Wh
Display: Bosch Purion 200
Charger: Bosch 2A Charger 230V
Drivetrain: 1x9
Approximate Weight: 21.8 kg
Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Pedals: Marwi SP-827
Front Hub: Shimano HBTC50015B CL, 15x100mm
Rear Hub: Shimano FH-TC500 142mm
Rims: X15 Disc
Spokes: Stainless steel Black 13G
Mudguards: Curana C-Lite 55
Front Light: Lezyne Mini Lite STVZO E350
Rear Light: Supernova TL3Z
Rear Rack: Racktime carrier Snapit 2.0 20Kg
Grips: Urban Comfort

Specifications may change without notice.

Size: L

Product variants

Out of stock

Add professional assembly: 60,00 € More info

Need help?

Passt gut zu

Fast and secure delivery

Personalised advice

2-year warranty

Hassle-free returns

Produktdetails

General

Year: 2027
Gender: Unisex
Family: Bicis
Wheel size: 700

Frame

Frame: Aluminio S-XXL=29", 6061 Aluminio Tubos de espesor variable, Batería de extracción superior
Fork: SR Suntour NRX32 E Aire LO
Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup

Cockpit

Handlebars: Syncros UC3.0 680mm, Elevación 12mm, retroceso 15°
Stem: JD, ajustable, 31.8*90 mm −10°~+60°, SP Connect
Grips: Urban Comfort

Brakes

Front brake: Shimano BR-MT201 2-Pistones/Shimano SM-RT30 CL, 180mm
Rear brake: Shimano BR-MT201 2-Pistones/Shimano SM-RT30 CL, 160mm

Saddle

Saddle: Selle Royal Explora Athletic 155mm
Seatpost: Syncros M3.0, 31.6mm, 350mm

Drivetrain

Shift levers: Shimano Cues SL-U4000 Pantalla integrada
Rear derailleur: Shimano Cues RD-U4000 9s
Cassette: Shimano Cues CS-LG300, 9s 11-46t
Chain: Shimano CN-LG500
Crankarms: FSA CK 220 170mm
Chainrings: FSA 42t DM With Chainguard
Pedals: Marwi SP-827
Speeds: 1x9

Wheels

Front tire: Schwalbe G-One Overland 365 Perf, 700x50C
Rear tire: Schwalbe G-One Overland 365 Perf, 700x50C
Rims: X15 Disc
Front hub: Shimano HBTC50015B CL, 15x100mm
Rear hub: Shimano FH-TC500 142mm
Spokes: Acero inoxidable Negro 13G

eBike Components

Motor: Bosch Performance Line SX
Battery: Compact Tube 400Wh
Charger: Bosch 2A cargador 230V
Screen: Bosch Purion 200

Other Components

Front light: Lezyne Mini Lite STVZO E350
Rear light: Supernova TL3Z
Fenders: Curana C-Lite 55
Rack: Racktime carrier Snapit 2.0 20Kg

*Images are for illustrative purposes only and may differ from the final product. Colours may vary depending on the screen used.

*Please note that technical specifications may be changed without prior notice by the manufacturer.
