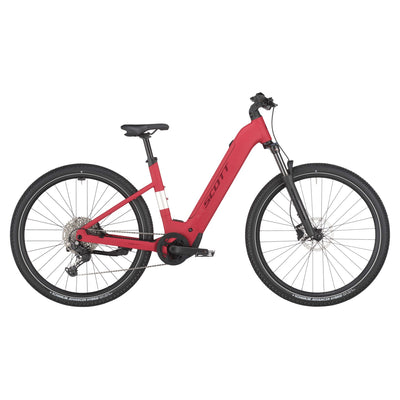

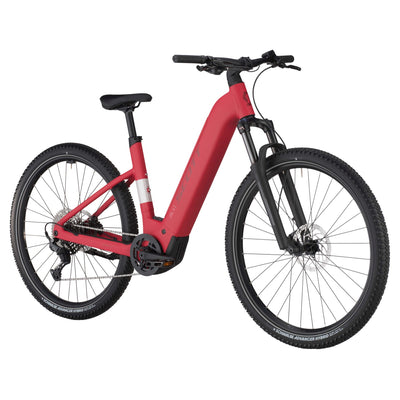

Scott Axis 30 Wave 2025 Raspberry Red
4233338127010
SCOTT AXIS 30 WAVE 2025 RASPBERRY RED
The Scott Axis 30 Wave 2025 Raspberry Red is an electric bike for everyday journeys and leisure rides. Its assistance system uses the Bosch Performance CX motor and a 600 Wh battery. The 1x11 drivetrain lets you adjust your pedalling to the route.
FEATURES:
- Frame: Alloy S-XL=29"/6061 Alloy custom butted tubing. Top extraction battery. UDH Interface/12x148mm with 52mm Chainline
- Fork: SR Suntour XCM34 LO Coil/Tapered/15x110 bolt Axle/Lock Out/120mm Travel
- Rear Derailleur: Shimano CUES RD-U6000GS 11 Speed
- Shifters: Shimano SL-U600011RC
- Crankset: FSA CK-220 165mm
- Cassette/Rear Sprocket: Shimano CS-LG40011 11-50T 11 Speed
- Chain/Belt: Shimano LG500
- Front Brake: Shimano BR-MT200 Disc Brakes
- Rear Brake: Shimano BR-MT200 Disc Brakes
- Front Tire: Schwalbe Advancer 60-622 Wired
- Rear Tire: Schwalbe Advancer 60-622 Wired
- Handlebar: Syncros 3.0 720mm/31.8mm/Backsweep 9°/12mm rise. Syncros Lock On Grip
- Stem: Syncros
- Seatpost: Syncros M3.0/31.6
- Saddle: Syncros Capilano
- Motor: Bosch Performance CX. EU: 25kmh
- Battery: PowerTube 600Wh
- Display: Bosch Purion 200
- Charger: 2A Charger
- Drivetrain: 1x11
- Approximate Weight: 28.2 kg
- Headset: Acros/1.5"- 1.5".semi integ. OD 50/61mm/ID 44/55mm
- Pedals: VP VPE-506
- Front Hub: Shimano HB-TC50015BB CL/15x110mm
- Rear Hub: Shimano FH-TC500HMBB CL/Boost 12x148mm
- Rims: Syncros X18 Disc
- Spokes: Black Spokes
- Kickstand: Ursus
Specifications may change without notice.
- Size:
- L
Passt gut zu
Fast and secure delivery
Personalised advice
2-year warranty
Hassle-free returns
Sollten Sie Fragen haben, können Sie sich jederzeit gerne an uns wenden. Wir melden uns so schnell wie möglich bei Ihnen – an Werktagen innerhalb von 24 Stunden.
-
Versandinformationen
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kundensupport
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
FAQ’s
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kontakt
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
Produktdetails
General
- Year
- 2025
- Gender
- Unisex
- Family
- Bicis
- Wheel size
- 28
Frame
- Frame
- Aluminio S-XL=29"/6061 Aluminio Tubos de espesor variable. Batería de extracción superior. interfaz UDH/12x148mm with 52mm Línea de cadena
- Fork
- SR Suntour XCM34 LO Muelle/cónico/15x110 bolt Eje/Bloqueo/120mm Recorrido
- Headset
- Acros/1.5"- 1.5".semi integ. OD 50/61mm/ID 44/55mm
Cockpit
- Handlebars
- Syncros 3.0 720mm/31.8mm/retroceso 9°/12mm Elevación. Syncros Lock On Grip
- Stem
- Syncros
Brakes
- Front brake
- Shimano BR-MT200 Frenos de disco
- Rear brake
- Shimano BR-MT200 Frenos de disco
Saddle
- Saddle
- Syncros Capilano
- Seatpost
- Syncros M3.0/31.6
Drivetrain
- Shift levers
- Shimano SL-U600011RC
- Rear derailleur
- Shimano CUES RD-U6000GS 11s
- Cassette
- Shimano CS-LG40011 11-50t 11s
- Chain
- Shimano LG500
- Crankarms
- FSA CK-220 165mm
- Chainrings
- FSA 36t w/Chain Guard
- Pedals
- VP VPE-506
- Speeds
- 1x11
Wheels
- Front tire
- Schwalbe Advancer 60-622 Wired
- Rear tire
- Schwalbe Advancer 60-622 Wired
- Rims
- Syncros X18 Disc
- Front hub
- Shimano HB-TC50015BB CL/15x110mm
- Rear hub
- Shimano FH-TC500HMBB CL/Boost 12x148mm
- Spokes
- Negro Spokes
eBike Components
- Motor
- Bosch Performance CX. EU: 25 km/h
- Battery
- PowerTube 600Wh
- Charger
- 2A cargador
- Screen
- Bosch Purion 200
Other Components
- Kickstand
- Ursus
*Images are for illustrative purposes only and may differ from the final product. Colours may vary depending on the screen used.
*Please note that technical specifications may be changed without prior notice by the manufacturer.
